Introduction:
Monitoring processes and systems in Linux is essential for maintaining smooth operation. Linux provides a variety of tools that help track performance, manage resources, and resolve issues before they escalate into bigger problems. In this blog, I will explore some of the most effective commands and techniques to help you monitor and optimize your Linux system with ease.
Tasks:
- Monitor running processes using ps, top, htop, and pidstat.
- Manage processes (kill, pkill, nice, renice, systemctl).
- Check system performance metrics such as CPU, memory, and disk I/O using vmstat, iostat, sar and free.
- Monitor log files using tail, head, less, and journalctl.
1. Monitor Running Processes:
Tools like ps, top, htop, and pidstat help you inspect and monitor processes.
Example:
1.1) View running processes: ps
Example:
ps aux | grep jenkins
This shows all processes related to Jenkins, along with their PID and memory usage.

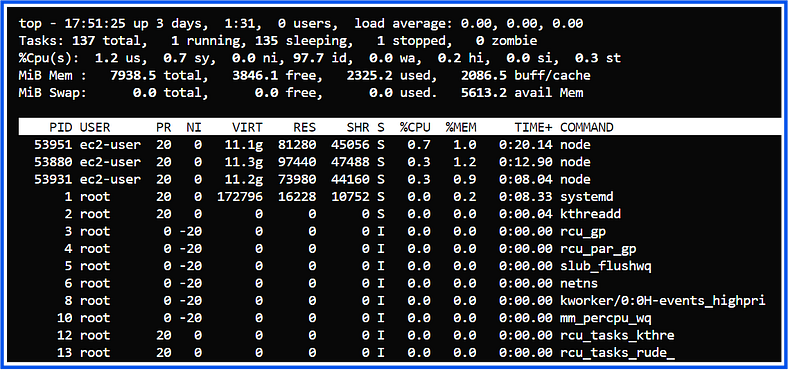

1.2) Inspect system-wide process details: top
top
Provides a live view of system processes and CPU and memory usage statistics.

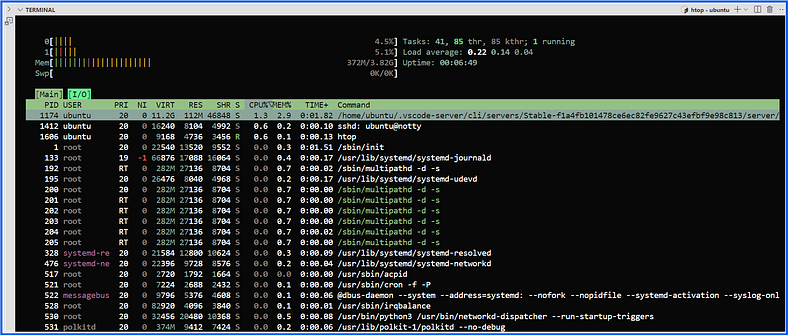

1.3) Use htop for interactive process management: htop
htop
- Navigate the process list using arrow keys.
- Search for Jenkins or Docker processes by pressing / and typing “jenkins”, “sshd” or “docker”.

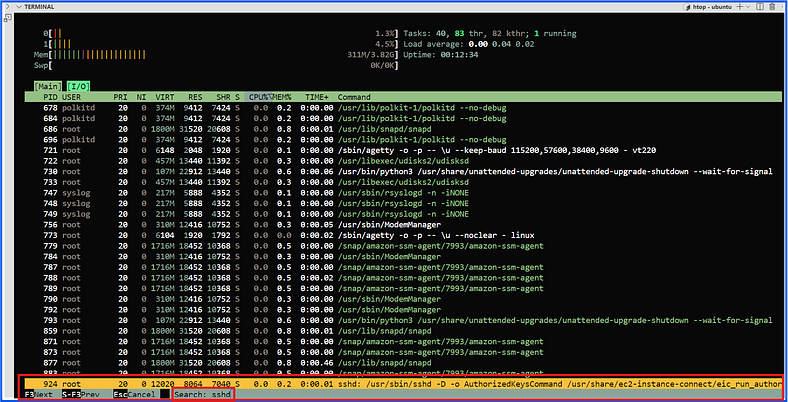

Ex: Search for sshd service:
1.4) Check detailed stats of a specific process: pidstat
pidstat -p <PID>
Replace with the process ID of Jenkins or Docker to see CPU and memory usage.
Note: The pidstat command is included in the sysstat package, which might not come pre-installed on your EC2 instance. You can install it by following these steps:
- Amazon Linux / Amazon Linux 2 / RHEL / CentOS:
sudo yum install sysstat -y

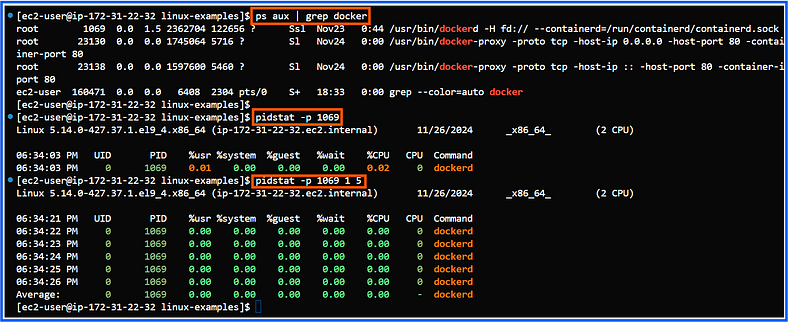

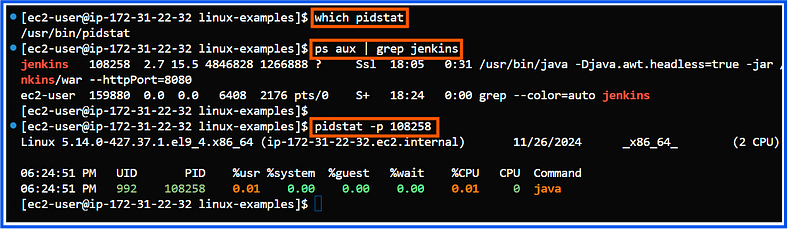

pidstat-jenkins-example:
pidstat-docker-example:
2) Manage processes (kill, pkill, nice, renice, systemctl)

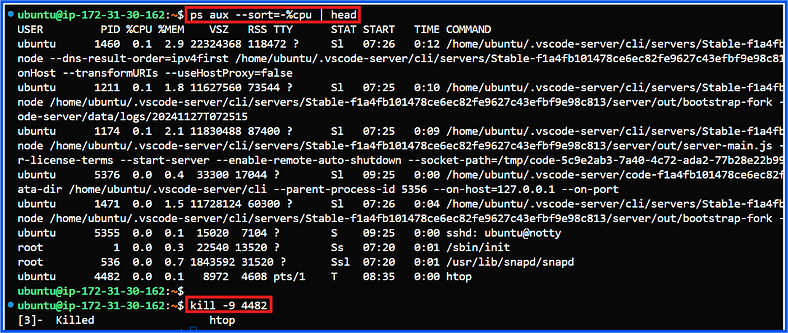

2.1) kill:
- Purpose: The kill command in Linux is utilized to stop processes by sending designated signals to their process IDs (PIDs).
How kill Works:
- Processes in Linux listen for signals sent to their PIDs.
- The kill command sends a signal (default is TERM) to the target process.
- The process can handle the signal (if programmed to do so) or terminate.
Syntax:
kill [options] <PID>

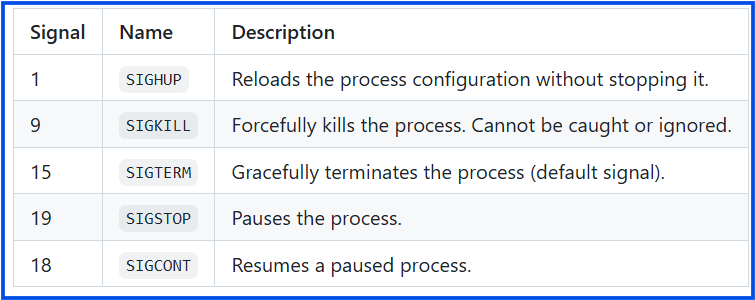

Common Signals:

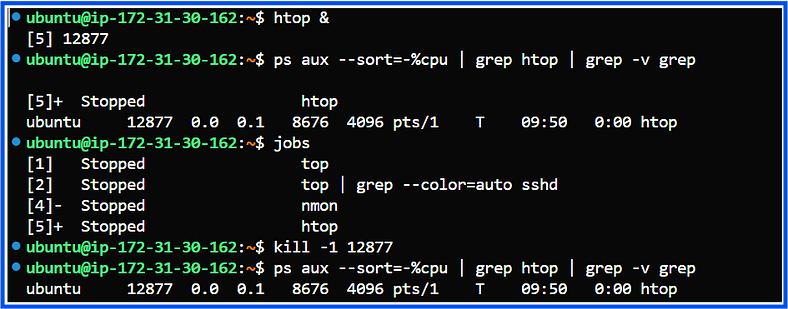

- Reload Process Configuration -Use SIGHUP to reload a process’s configuration without stopping it:
kill -1 <PID>
Alternatives to kill:
- killall: Terminates processes by name:
killall apache2
- pkill: Sends signals to processes by name, user, or other criteria:
pkill -u <username> <process_name>
- xkill: Graphically kill a window on desktop environments.
2.2) nice ,renice:
- Purpose: Nice and renice are commands used to modify the priority of a process, influencing the amount of CPU time it receives in relation to other processes.
2.2.1) nice:
Used to start a new process with a specified niceness value (priority level).
nice -n <niceness_value> <command>
- <niceness_value>: A number between -20 (highest priority) and 19 (lowest priority). The default is 0.
- Lower niceness = higher priority.
Example:
nice -n 10 python script.py
- Starts the process python script.py with a lower priority (niceness value 10).
2.2.2) renice:
Used to change the priority of an already running process.
renice <niceness_value> -p <PID>
- <niceness_value>: The new priority value.
- PID: Process ID of the target process.
Example:
renice 5 -p 1234
- It changes the priority of the process with PID 1234 to 5
2.3) systemctl:
- Purpose: The systemctl command is utilized for managing systemd services, which are responsible for starting, stopping, and overseeing various services and processes.
Syntax:
systemctl [OPTIONS] COMMAND [SERVICE_NAME]
- OPTIONS: Additional flags for controlling how the command runs (e.g., — quiet or — no-block).
- COMMAND: The action to perform on the service (e.g., start, stop, restart, etc.).
- SERVICE_NAME: The name of the service or unit to manage (e.g., docker, jenkins, kubelet).
Systemctl Command Examples:
Start a Service:
To start a service using the systemctl command:
sudo systemctl start docker
Stop a Service:
To stop a service using the systemctl command:
sudo systemctl stop docker
Restart a Service:
To restart a service using the systemctl command:
sudo systemctl restart docker
sudo systemctl restart jenkins

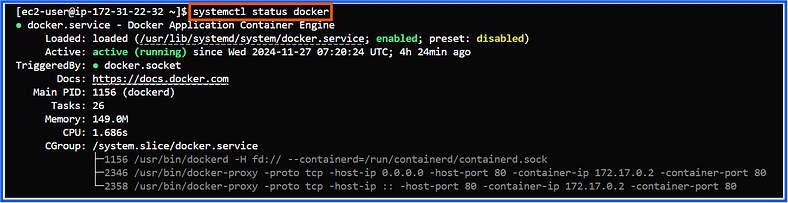

Check the Status of a Service:
To check the status of a service:
systemctl status docker
systemctl status kubelet
Enable a Service to Start at Boot:
To enable a service to start automatically at boot:
sudo systemctl enable docker
sudo systemctl enable jenkins
Disable a Service from Starting at Boot:
To prevent a service from starting automatically at boot:
sudo systemctl disable docker
Reload Configuration Without Restarting:
To reload the configuration of a service without restarting it:
sudo systemctl reload nginx
sudo systemctl reload apache2

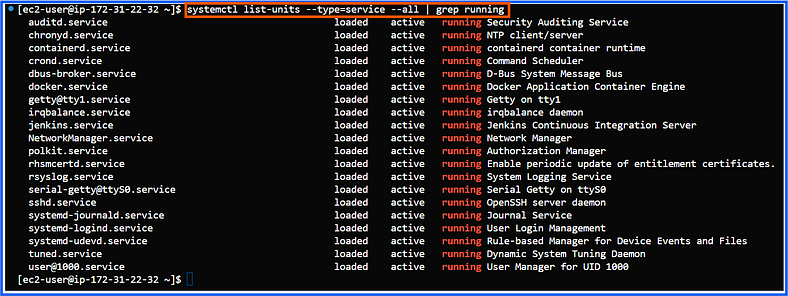

View All Running Services:
To view all running services on the system:
systemctl list-units --type=service
systemctl list-units --state=running
Additional Examples:

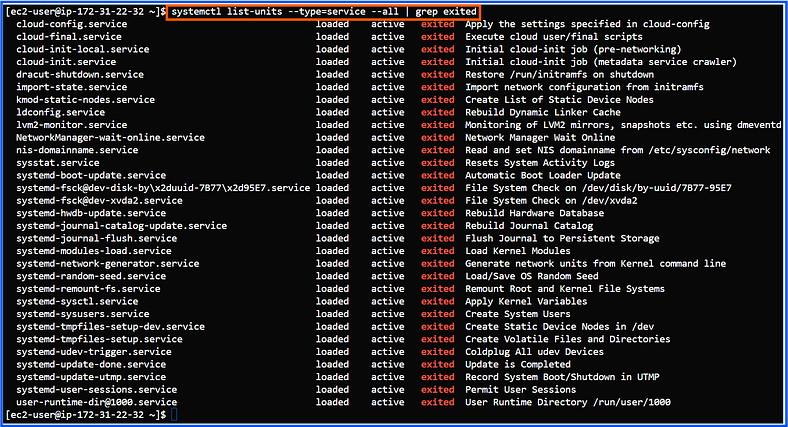

List Services by Specific States:
systemctl list-units --type=service --state=failed
systemctl list-units --type=service --state=inactive
Check System Logs for a Service:

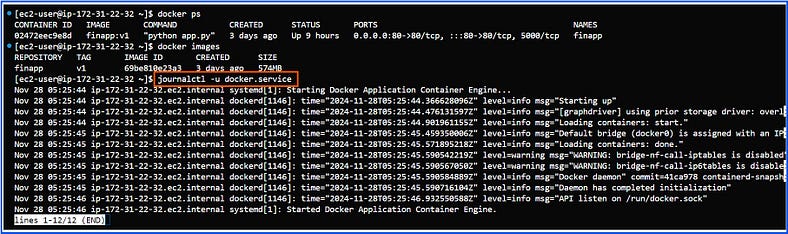

journalctl -u docker.service
journalctl -u nginx.service
3) Check system performance metrics such as CPU, memory, and disk I/O using vmstat, iostat, sar and free.
3.1) vmstat (Virtual Memory Statistics):
Purpose: Displays a snapshot of system performance, including CPU, memory, and I/O usage. Ideal for identifying bottlenecks.
Key Metrics:
- CPU: us (user), sy (system), id (idle), wa (waiting for I/O).
- Memory: free, buff, cache.
- Disk I/O: bi (blocks in), bo (blocks out) Example Use Cases:
- Monitor system performance in real time (every second for 5 intervals):

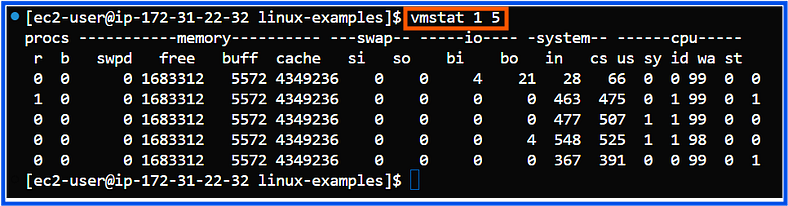

vmstat 1 5
- Output Example:
- r: Number of processes waiting to run (high r = CPU bottleneck).
- wa: High values indicate I/O bottlenecks (e.g., slow disk or network)
- To detect high I/O wait during Jenkins builds, execute vmstat while a Jenkins job is running. If the ‘wa’ value is elevated, look into the performance of the disk or the activity of Docker containers.
3.2) iostat (Input/Output Statistics):
Purpose: This tool provides insights into CPU usage and the I/O performance of storage devices and partitions.
Key Metrics:
- %iowait: The percentage of CPU time spent waiting for I/O operations to finish. Elevated values suggest possible disk or network bottlenecks.
- r/s, w/s: The number of read and write requests per second, showing the intensity of disk activity.
- rkB/s, wkB/s: Kilobytes read and written per second, indicating the data transfer rate.
- %util: The percentage of time the disk was busy. Values nearing 100% indicate the disk is a bottleneck.
Example Use Cases:
- Monitor disk I/O in real time (update every second):
iostat -dx 1

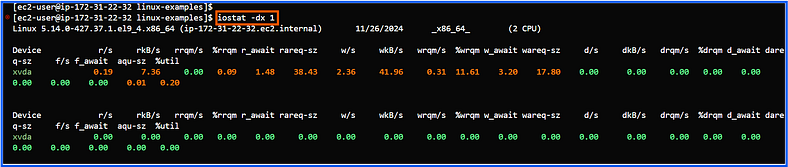

- Output Example:
How to Use iostat for Docker/EKS Applications?
Practical Example for Docker:
Scenario: A container running a MySQL database is slow.
1. Run iostat:
iostat -dx 1
- If %util is consistently above 90% or w_await is high, the disk is overloaded or slow.
2. Identify the container causing high disk usage:
docker stats
- Look for the MySQL container’s IO metrics.
- docker stat command output example:
3. Solution:
- Move the database files to a faster storage backend (e.g., AWS EBS gp3 or io2 volumes).
- Optimize database queries or reduce IOPS requirements.
Check Kubernetes Storage Usage:
For EKS, check the Kubernetes storage backends:
If the application is utilizing AWS EBS volumes,
keep an eye on the performance of the attached volume:
1. Use AWS CloudWatch Metrics (e.g., VolumeReadOps, VolumeWriteOps)
to monitor EBS volume usage.
2. Alternatively, on the EKS node, use iostat to check the performance
of the /dev/xvda or /dev/nvme* devices.
3.3) sar (System Activity Reporter):
Purpose:
- The sar command is used to collect, report, and save metrics related to system performance, such as CPU, memory, disk, and network usage. It is particularly helpful for analyzing real-time system activity as well as historical trends from logs that were collected earlier.
Key Metrics Tracked:
- CPU usage: %user, %system, %iowait, %idle, etc.
- Disk I/O: Transfer rates, wait times, and device utilization.
- Memory usage: Free and used memory, swap activity.
- Network usage: Packet transfer rates and errors over time.
Usage:

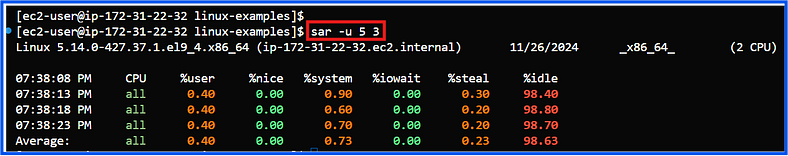

- Real-Time CPU Usage:
sar -u 5 3
- Captures CPU usage in real time every 5 seconds for 3 iterations.
- Here’s a complete guide for using the sar command to monitor system activity, which includes enabling necessary components and troubleshooting steps:
Step 1: Install Sysstat
- i) Install the package:
sudo yum install sysstat -y
- ii) Verify the installation:
sar -V

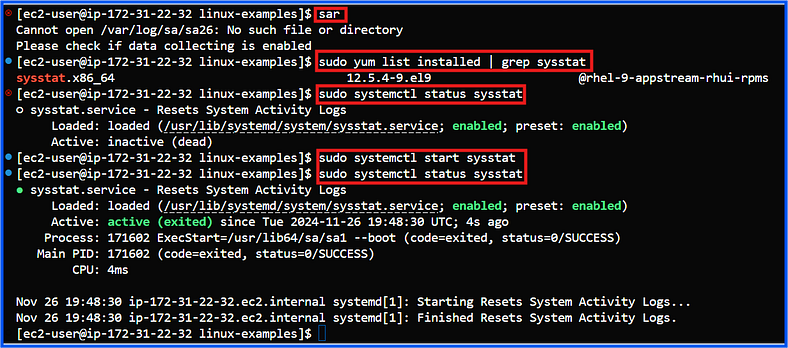

Step 2: Enable and Start the Sysstat Service
- i) Enable the service:
sudo systemctl enable sysstat
- ii) Start the service:
sudo systemctl enable sysstat
- iii) Verify the service is running:
sudo systemctl status sysstat
Step 3: Configure Data Collection
- The sar command depends on regular data collection performed by the sa1 script, which is activated through cron jobs or systemd timers.
- Option A: Using Cron Jobs
- Check if a cron job exists:

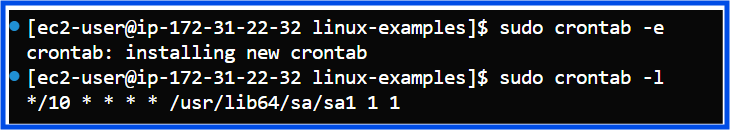

- i) Configure a cronjob:
sudo crontab -e
- Add the following line to collect system activity data every 10 minutes:
*/10 * * * * /usr/lib64/sa/sa1 1 1
- ii) Verify the cron job:
sudo crontab -l
Option B: Using Systemd Timers
- If your system uses systemd timers instead of cron:
- i) Check for sysstat timers:
sudo systemctl list-timers | grep sysstat
- ii) Enable and start the timer:
sudo systemctl enable sysstat-collect.timer
sudo systemctl start sysstat-collect.timer

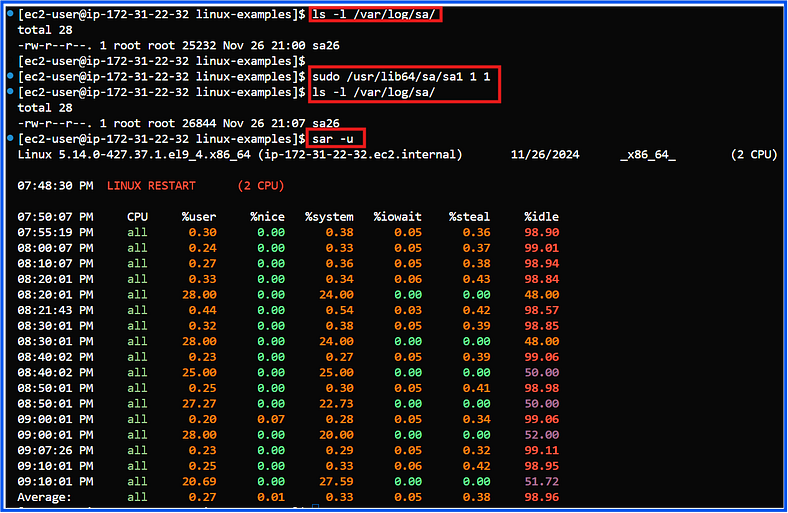

Step 4: Verify Data Collection
- Data collected by sysstat is stored in /var/log/sa/.
- i) Check for data files:
ls -l /var/log/sa/
- Files like sa26 (raw data) and sar26 (human-readable reports) should appear.
- ii) Manually test data collection: To verify that sa1 is working, manually trigger it:
sudo /usr/lib64/sa/sa1 1 1
- Check if a new file appears in /var/log/sa/
Step 5: Use the sar Command
- Once data is collected, you can use sar to analyze system performance:
- i) Overall CPU usage for the current day:
sar -u

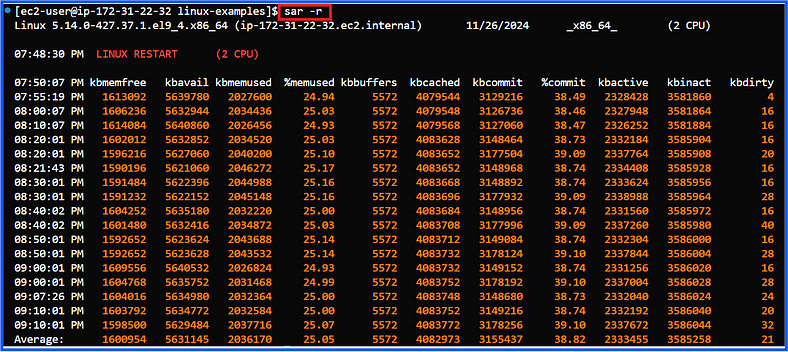

- ii) Memory Usage:
sar -r

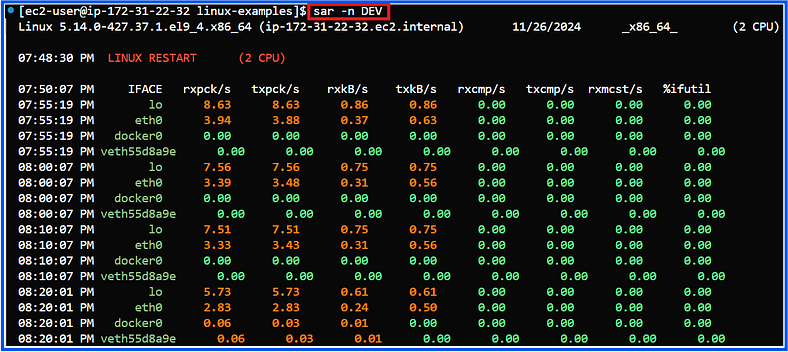

- iii) Network Usage:
sar -n DEV

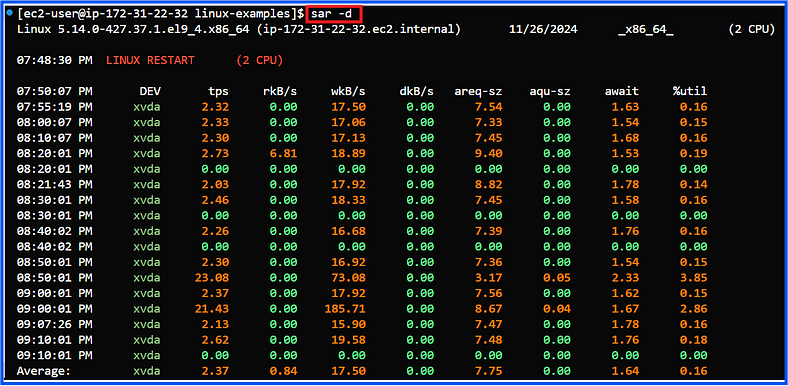

- iv) Disk I/O:
sar -d
- v) Load Average:
sar -q
- vi) Historical Data Analysis:

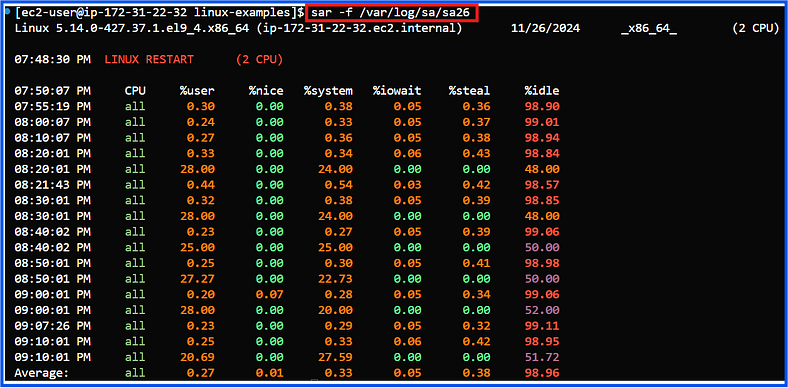

- View data from a specific log file (e.g., /var/log/sa/sa26):
sar -f /var/log/sa/sa26
3.4) free:
- The free command in Linux displays information regarding the system’s memory usage. It offers details about the total amount of free and used physical memory, swap memory, and the memory buffers utilized by the kernel.
Syntax:
free [options]
Common Options:
- -b: Display memory in bytes.
- -k: Display memory in kilobytes (default).
- -m: Display memory in megabytes.
- -g: Display memory in gigabytes.
- -h: Display memory in human-readable format (e.g., 1.5G, 256M).
- -t: Display a line showing the total memory (RAM + swap).
- -s N: Continuously display memory usage every N seconds.

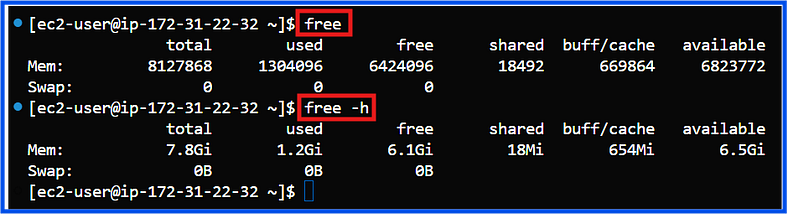

Example Usage:
free -h

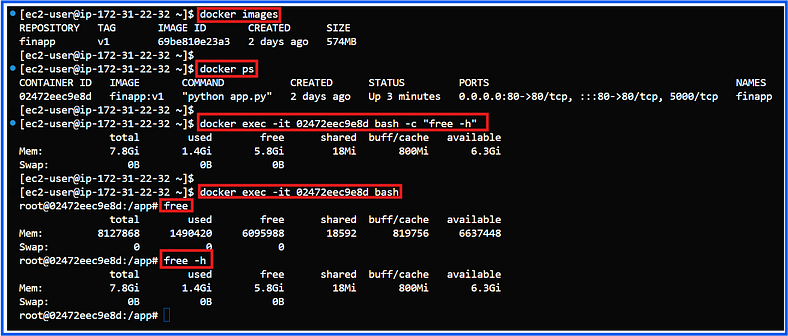

Scenario 1: Verifying Memory Availability in Docker Containers
- Problem: A Docker container running a critical application is slowing down, and you suspect memory usage inside the container is causing performance degradation.
- Solution: Run the free command inside the container to verify memory usage.
4. Monitor log files using tail, head, less, and journalctl.
4.1) tail:
The tail command is used to view the end of a file in real-time or display a specific number of lines.
- Syntax:
tail [options] <file>
Options:
- -n : Show the last lines.
- -f: Follow the file for real-time updates as new lines are added (useful for logs).
- Use Case in DevOps: Example:

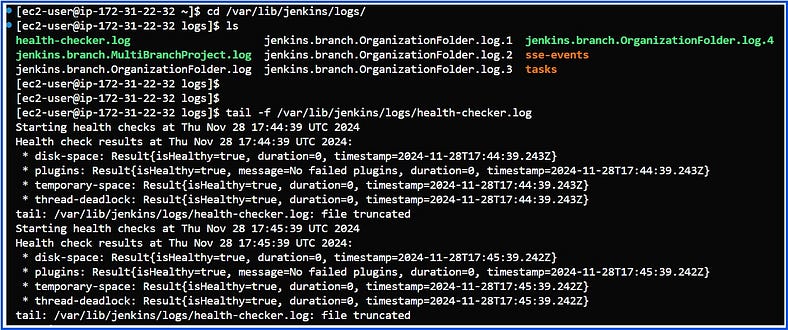

- The health-checker.log may contain useful information about the Jenkins service health.
tail -f /var/lib/jenkins/logs/health-checker.log

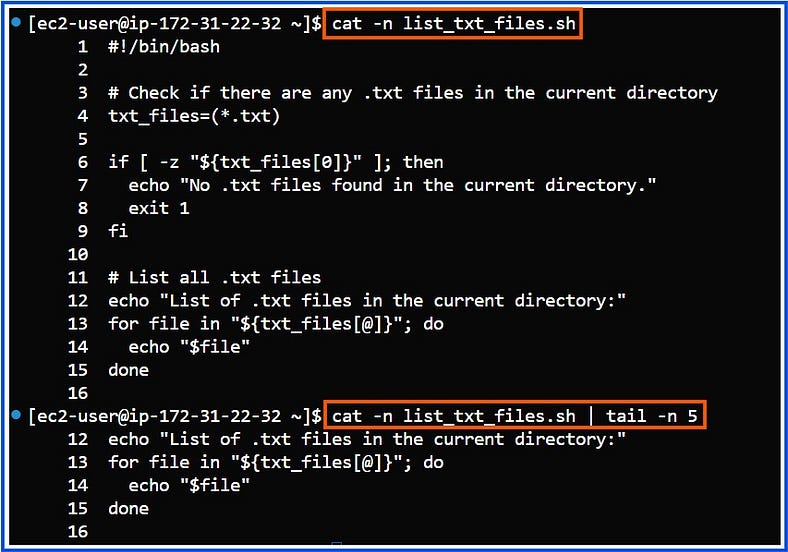

- To get last the last 5 lines of specified file:
cat -n list_txt_files.sh | tail -n 5
4.2) head:
The head command is used to display the beginning of a file, often for a quick overview.
- Syntax:
head [options] <file>
Use Case in DevOps:

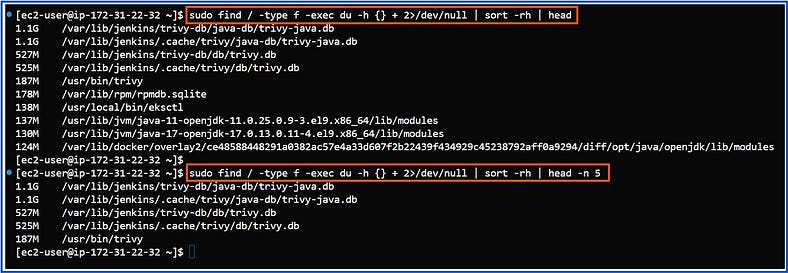

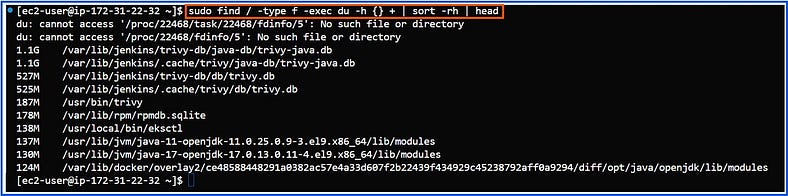

Example 1: To find the top 10 largest files:
sudo find / -type f -exec du -h {} + 2>/dev/null | sort -rh | head
Example 2: To find the top 5 largest files:
sudo find / -type f -exec du -h {} + 2>/dev/null | sort -rh | head -n 5

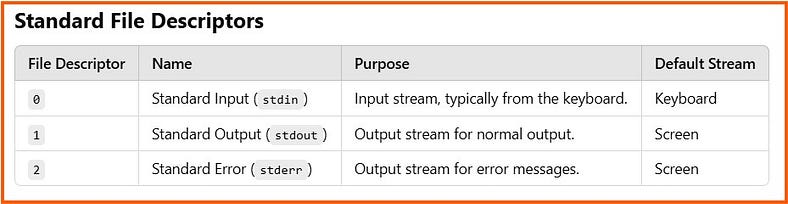

Note: In the above example we used 2>/dev/null to suppress the standard errors. You can check the following the image where we are do not use 2>/dev/null:
sudo find / -type f -exec du -h {} + | sort -rh | head
4.3) less:
The less command is used to view a file page by page. It allows you to scroll through logs efficiently without loading the entire file into memory.
less example.txt
- Common Navigation Keys:
- Space: Scroll down one page.
- b: Scroll up one page.
- /search_term: Search for a specific term.
- n: Move to the next match for the search term.
- q: Quit.
Use Case in DevOps:
- Scenario: Investigate an issue by searching for specific error messages in logs.
- Scenario: Analyze large log files without affecting system performance.
4.4) journalctl:
The journalctl command is used to view logs managed by the systemd journal, which captures system logs, service logs, and kernel logs.
- Syntax:
journalctl [options]
Options:
- -u : Show logs for a specific service.
- -f: Follow the logs in real-time (similar to tail -f).
- — since “time”: Show logs from a specific time.
- — no-pager: Disable paging to view all logs at once.
- Scenario: Debug a server crash by reviewing kernel logs.
journalctl -k
Scenario: retrieve logs specifically related to the Docker service managed by systemd.
journalctl -u docker.service
Scenario: Reviewing Logs After an Incident
journalctl --since "2024-11-27 08:00:00" --until "2024-11-28 09:00:00"
Conclusion:
Imagine a busy online store running on Linux during a big sale. Thousands of shoppers visit the site at the same time. This scene tests how well your system performs. Tools like top or htop help spot if the website uses too much CPU power. iostat shows if disk input/output is slowing down queries to the database.
If the internet connection slows, netstat or tcpdump identifies the bottlenecks. If the system crashes, journalctl gives detailed logs. These logs help quickly find and fix problems. They restore services fast.
Using these Linux tools during real situations helps IT teams keep sites running. Teams provide a smooth user experience. They also manage important business tasks with confidence. These tools are more than just utilities. They serve as lifelines for modern IT.
Discover, learn, and grow together at SubbuTechOps! Explore valuable insights on DevOps, Linux, Networking, and IT practices, and let your feedback and suggestions guide us to even greater heights on this shared journey.
Thank you, and happy learning!
