What is Port Forwarding in K8s?

Port forwarding in Kubernetes creates a direct tunnel between your local machine and a pod/service in your Kubernetes cluster. It enables:

• Local access to cluster services
• Development and debugging
• Secure access without exposing services externally

Basic Syntax:

kubectl port-forward resource-type/resource-name local-port:container-port

# Resource Types:
- pod/my-pod
- svc/my-service
- deployment/my-deployment

How does this port-forward mechanism actually work in K8s?

Let’s break the flow:

1. Local Development Environment:

• The user executes a port-forward command on the local machine
• kubectl CLI processes the command
• Command format: kubectl port-forward pod/name 9095:8081

2. Authentication & Authorization:

• kubectl verifies credentials using kubeconfig
• Establishes a secure connection to the cluster

3. Kubernetes API Server:

• Validates the request
• Authorizes user access
• Routes request to the appropriate node

4. Node/Worker & kubelet:

• Node receives the forwarding request
• kubelet creates secure tunnel to pod
• Manages the connection lifecycle

5. Pod Network Space:

• Tunnel connects to specific pod
• Application/service receives traffic on port 8081
• Bi-directional communication established

This creates an end-to-end secure tunnel that allows:

• Local access through port 9095
• Direct communication with pod on port 8081
• Secure, encrypted traffic flow
• No external exposure to the service

Now we will see an example flow for port-forwarding network traffic flow concept:

Local Port (9095):

• Entry point on your local machine
• Where you send requests from your local environment
• Example: http://localhost:9095

Bi-directional Traffic:

• Creates secure tunnel between local and pod
• Requests flow from local → pod
• Responses flow from pod → local
• All traffic is encrypted and secure.

Pod Port (8081):

• Where your application listens in the pod
• An application running on 8081
• Handles incoming requests
• Sends responses back through the tunnel

Common Use Cases

1. Debugging/Testing Services or Applications Locally:

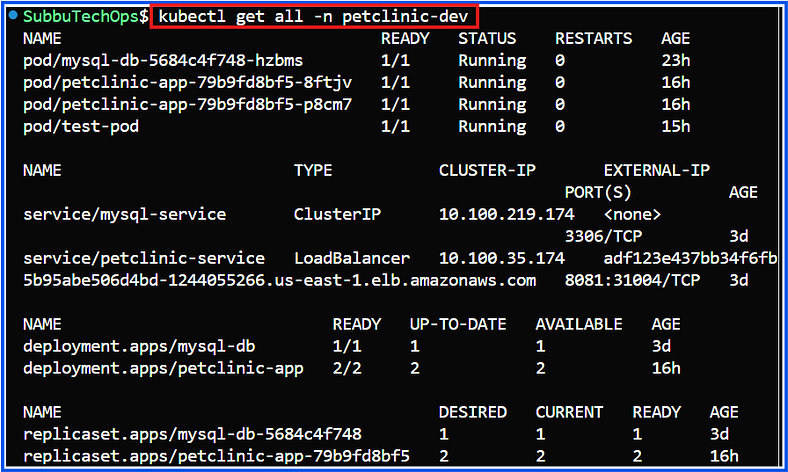

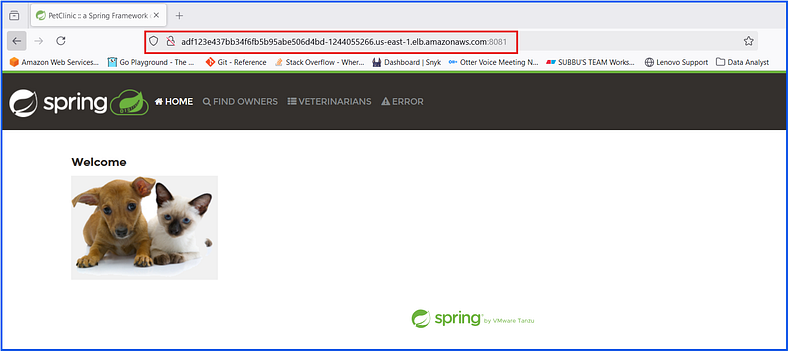

For the above example, the application can access the internet using a load balancer.

• Use Case of Port-Forwarding: Developers can use port forwarding to access the petclinic-service directly from their local machine on localhost:9095 without needing an external load balancer or exposing the service publicly.
• It is helpful in testing and verifying application behaviour.

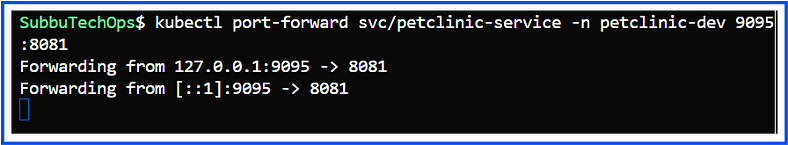

Let’s run the kubectl port-forward command and see what happens:

kubectl port-forward svc/petclinic-service -n petclinic-dev 9095:8081

The command kubectl port-forward svc/petclinic-service -n petclinic-dev 9095:8081 forwards traffic from local port 9095 to the service’s port 8081.

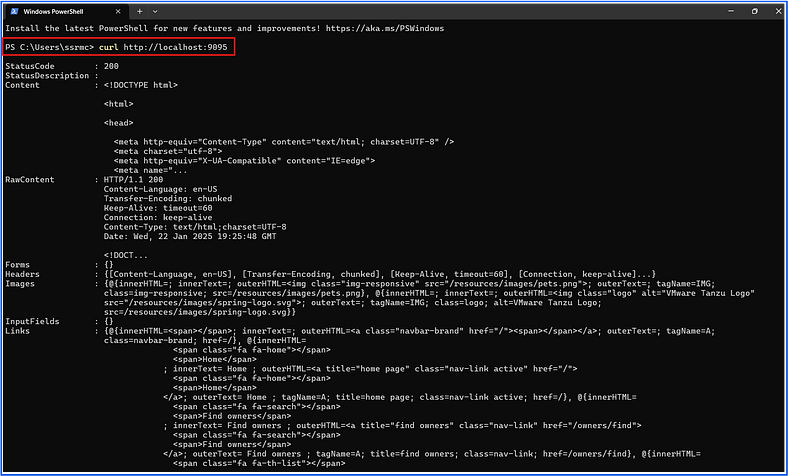

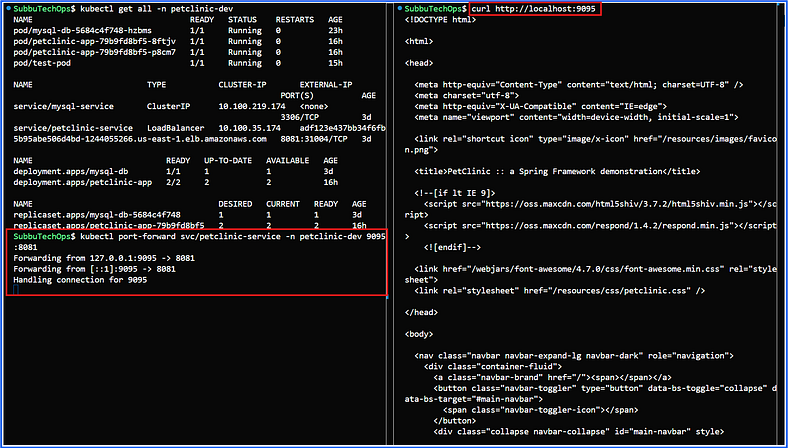

Even in the local terminal also, we can test it:

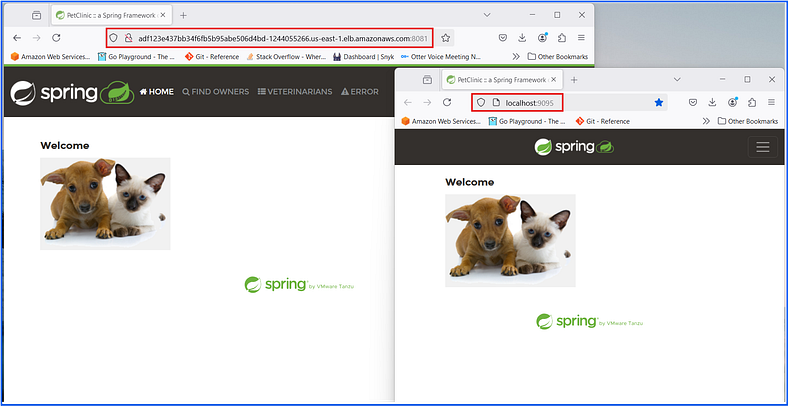

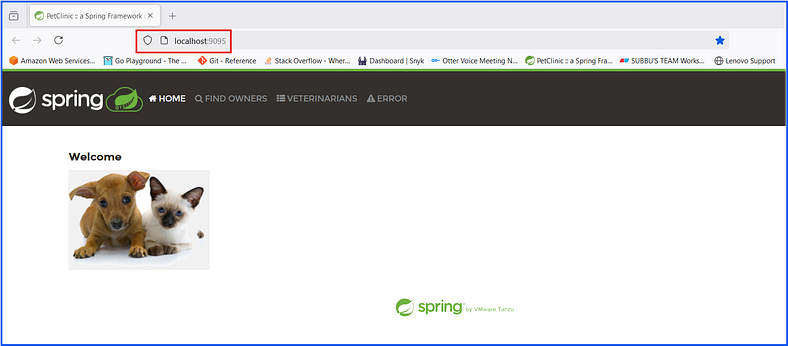

We can access the application on the browser with localhost:

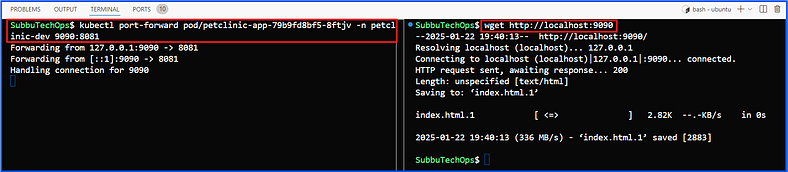

We can test the application pod also directly using port-forwarding:

kubectl port-forward pod/petclinic-app-79b9fd8bf5-8ftjv -n petclinic-dev 9090:8081

The command kubectl port-forward pod/petclinic-app-79b9fd8bf5-8ftjv -n petclinic-dev 9090:8081 forwards traffic from local port 9090 to port 8081 of the specific pod petclinic-app-79b9fd8bf5-8ftjv in the petclinic-dev namespace.

2. Database Connectivity for Local Development:

• Use Case: Connect to a database running in a Kubernetes cluster from a local development environment for queries or configuration.
• Example: Forward a local port to a database pod’s port.

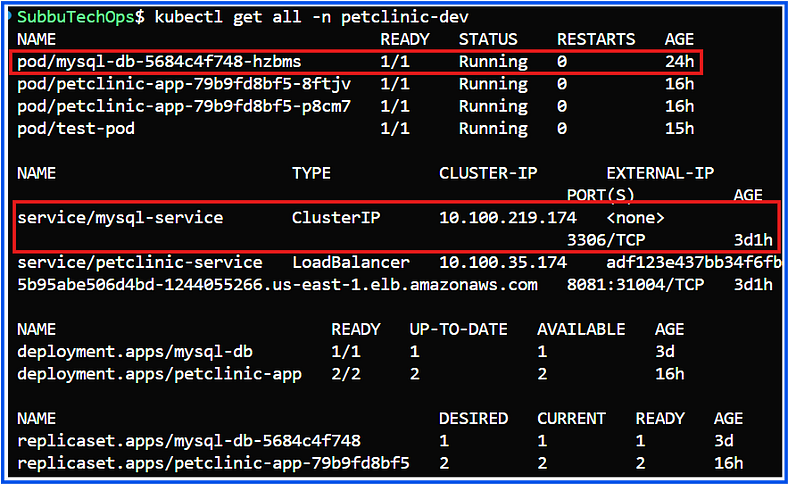

We will do it for mysql-db now:

Use kubectl port-forward to Expose the MySQL Pod Locally

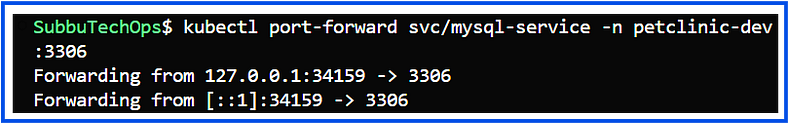

kubectl port-forward svc/mysql-service -n petclinic-dev :3306

Note:

You don’t explicitly specify the local port. Kubernetes will randomly choose an available port.

The : before 3306 means Kubernetes will dynamically assign a local port on your machine to forward traffic to port 3306 of the mysql-service in the petclinic-dev namespace.

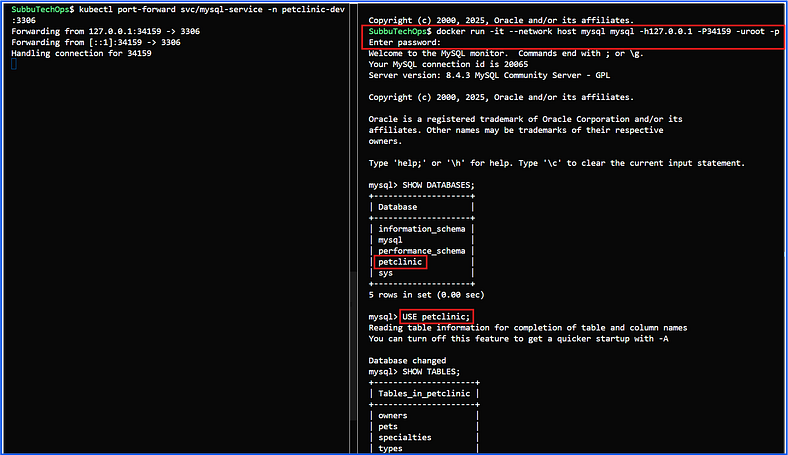

In the above example k8s is assigned port 34159 randomly.

How to Connect to MySQL:

You can connect to the MySQL database on your cluster using the dynamically assigned port 34159.

In this way we can access database pod using port forwarding locally in a secure way.

port-forward –address Flag:

By default, port forwarding binds only to 127.0.0.1 (localhost). The –address flag allows you to specify which network interfaces the forwarding should listen on.

Use Case: Exposes a pod’s application for testing or sharing with others on the same network.

Usage:

kubectl port-forward --address 0.0.0.0 pod/pod-name local-port:pod-port

Example:

kubectl port-forward svc/petclinic-service -n petclinic-dev --address 0.0.0.0 9099:8081

In This Command:

• –address 0.0.0.0 makes the port accessible on all network interfaces, enabling external devices to connect using your machine’s IP address.

When to Use –address 0.0.0.0:

• Default Behavior: Without this flag, the forwarding is accessible only from localhost (your machine).

Use Case:

• If you need to provide external access to the application, such as for testing by teammates or on other devices, use –address 0.0.0.0.

Security Group or Firewall Configuration:

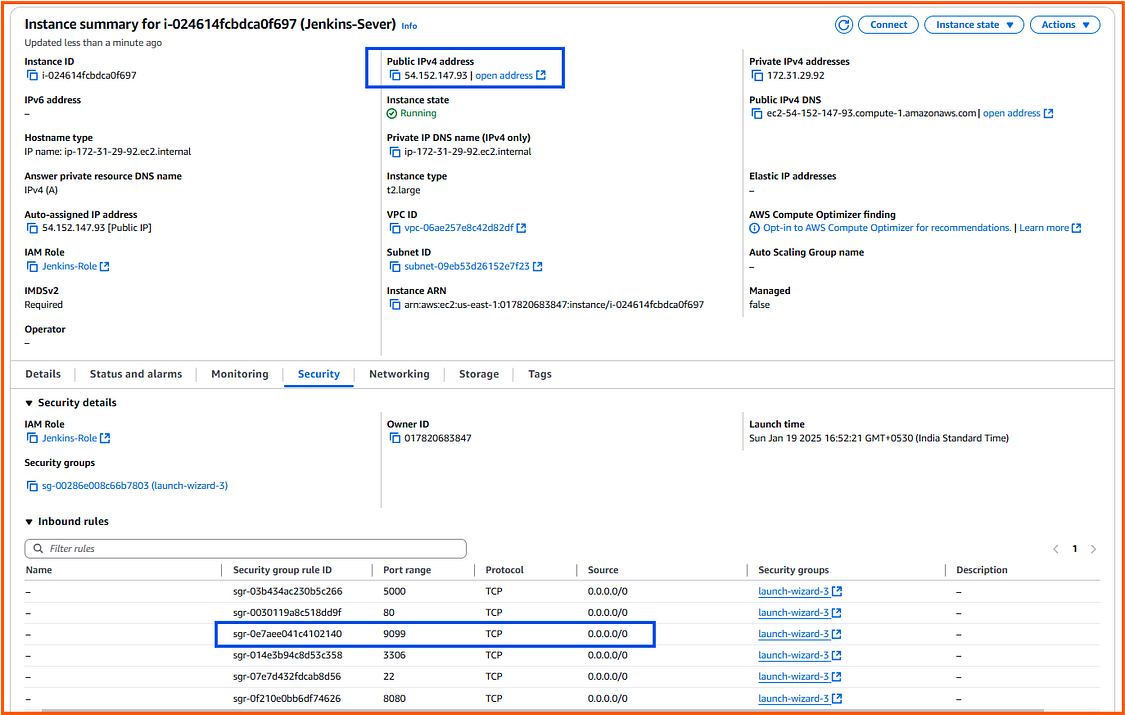

For the above example, If you’re running this command on a cloud instance, ensure the security group or firewall allows inbound traffic to port 9099.

Testing Access:

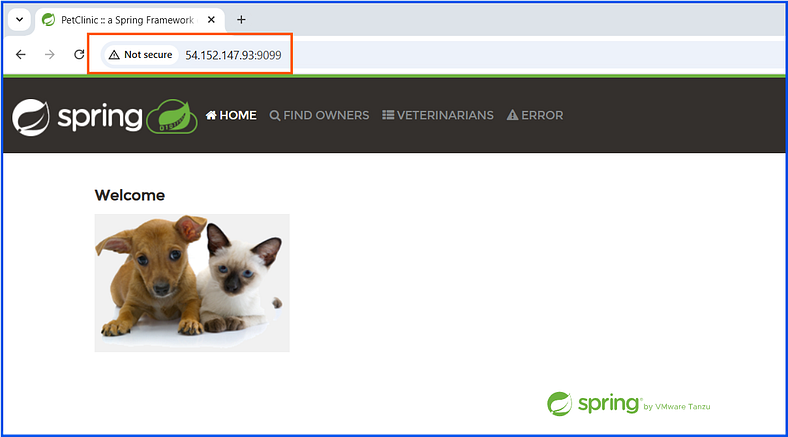

Now I can access the application using that server IP Address with port 9099:

Note:

By binding to 0.0.0.0, any device that can reach your machine (based on your network and firewall rules) can connect to the forwarded port.

Best Practices:

• Use this only in trusted networks.
• Restrict access by configuring firewalls or security groups.

Conclusion:

Port forwarding in Kubernetes (kubectl port-forward) is a crucial development tool that creates a secure tunnel between your local machine and cluster resources. It’s like having a private, encrypted pathway to your services without exposing them to the Internet.

Key Takeaways:

• Simple Syntax: kubectl port-forward <resource> <local-port>:<target-port>
• Secure Access: Direct, encrypted connection to pods and services
• Development Friendly: Test and debug without cluster modifications
• Versatile Use: Works with any service — web apps, databases, APIs

Remember: While port forwarding is perfect for development and debugging, it’s not intended for production use.
